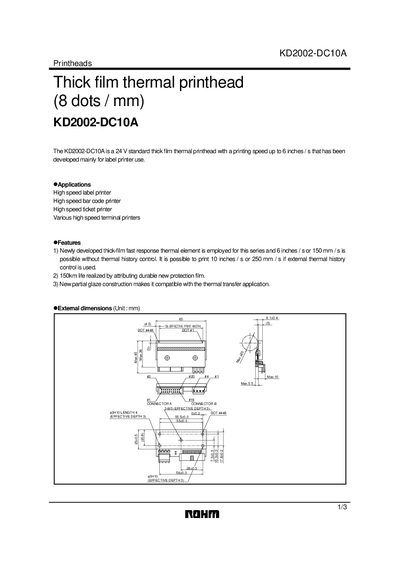

The KD2002-DC10A is a 24V standard thick film thermal printhead with a printing speed up to 6 inches / s that has been developed mainly for label printer use.
The KD2002-DC10A is a 24 V thick‑film thermal printhead designed for high‑speed label, barcode, ticket and terminal printers. It can print up to 6 inches / s (150 mm/s) without thermal‑history control and up to 10 inches / s with external control.
The document lists external dimensions, equivalent circuit diagrams, pin assignments for connectors A and B, timing charts, and a full set of electrical characteristics. An appendix contains legal notices and export‑control information.
| Effective printing width | 56 mm |
|---|---|
| Dot pitch | 0.125 mm |
| Total dot number | 448 dots |
| Average resistance (Rave) | 650 Ω |
| Applied voltage | 24 V |
| Applied power per dot | 0.82 W |
| Maximum clock frequency | 12 MHz |
| Operating temperature | 5 to 45 °C |
The printhead operates at 24 V.
It can print up to 6 inches per second (150 mm/s).
The printhead contains 448 dots.
The device is rated for 5 °C to 45 °C.
