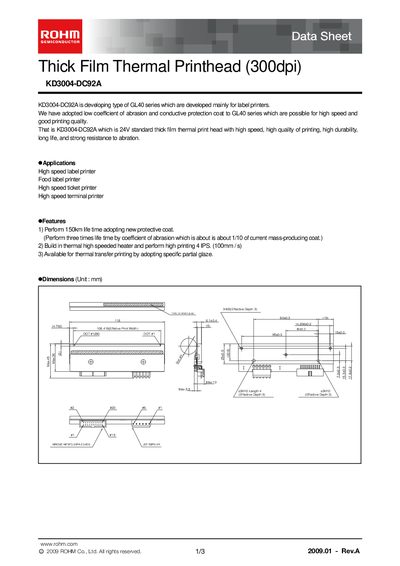

KD3004-DC92A is a developing type of GL40 series, mainly developed for label printers. It adopts low coefficient of abrasion and conductive protection coat, enabling high speed and good printing quality. KD3004-DC92A is a 24V standard thick film thermal print head with high speed, high quality printing, high durability, long life, and strong resistance to abrasion.
The KD3004-DC92A is a 24 V thick‑film thermal printhead designed for high‑speed label, ticket, and terminal printers. It features a low‑abrasion conductive coating for durability and high‑quality printing.
Key specifications include an effective printing width of 108.42 mm, dot pitch of 0.0847 mm, 1280 total dots, and a maximum clock frequency of 12 MHz. The device operates from 5 °C to 45 °C and can print at up to 4 IPS (100 mm/s).
| Effective printing width | 108.42 mm |
|---|---|
| Dot pitch | 0.0847 mm |
| Total dot number | 1280 dots |
| Average resistance value | 1250 Ω |
| Applied voltage | 24 V |
| Applied power | 0.51 W/dot |
| Print cycle | 0.83 ms |
| Maximum clock frequency | 12 MHz |
| Maximum roller diameter | 20.0 mm |
| Operating temperature | 5 to 45 °C |
The KD3004-DC92A operates at a standard voltage of 24 V.
It contains a total of 1280 dots.
The printhead can print at up to 4 IPS (100 mm/s).
It is rated for operation between 5 °C and 45 °C.
