KD3006-DC72A is a thermal printhead produced by ROHM Co., Ltd., which has thermal history control function and is suitable for applications requiring 24-hour continuous operation, such as factory production lines.
The KD3006-DC72A is a thick‑film thermal printhead featuring an internally developed heat‑history control function. It is intended for continuous 24‑hour operation in high‑speed label, bar‑code, ticket, and other terminal printers.

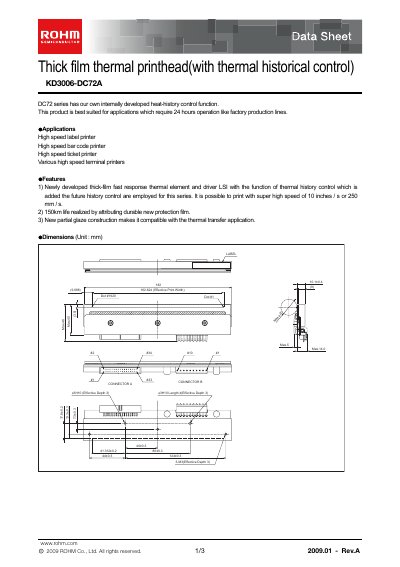

Key features include a fast‑response thermal element, a maximum printing speed of 10 inches / s (250 mm / s), a rated life of 150 km, and compatibility with thermal‑transfer applications. The datasheet lists dimensions, pin assignments, equivalent circuit diagrams, and electrical characteristics for designers.
| Maximum printing speed | 10 inches/s (250 mm/s) |
|---|---|
| Rated life | 150 km |
It is best suited for high‑speed label printers, bar‑code printers, ticket printers, and various high‑speed terminal printers.
The printhead can print at up to 10 inches per second (250 mm per second).
The device is rated for a life of 150 km of printing.
