KD2006-DC10A is a 24V standard thick film thermal printhead that can print at speeds up to 6 inches/second, primarily for use in label printers.
The KD2006-DC10A is a 24 V standard thick‑film thermal printhead designed for high‑speed label, barcode, ticket and terminal printers. It offers a printing speed of up to 6 inches / s (150 mm / s) and a durable life of 150 km.

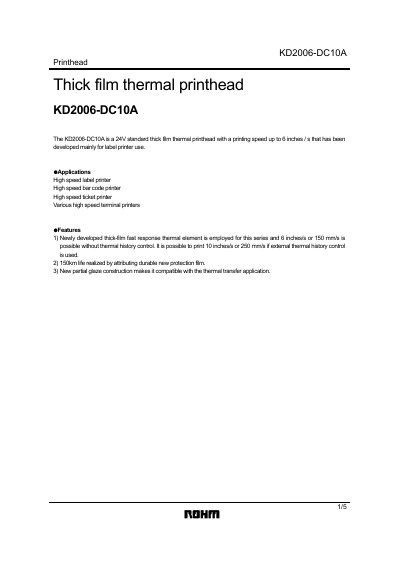

The document provides external dimensions, pin assignments, equivalent circuit details, characteristic parameters, and data sheets for energy and optical density. An appendix includes usage notes and export control information.
| Operating voltage | 24 V |
|---|---|
| Maximum printing speed | 6 inches / s (150 mm / s) |
| Rated lifetime | 150 km |
It operates at a standard 24 V.
The printhead can print up to 6 inches per second (150 mm per second) without thermal history control.
It is rated for a lifetime of 150 km of printing.
