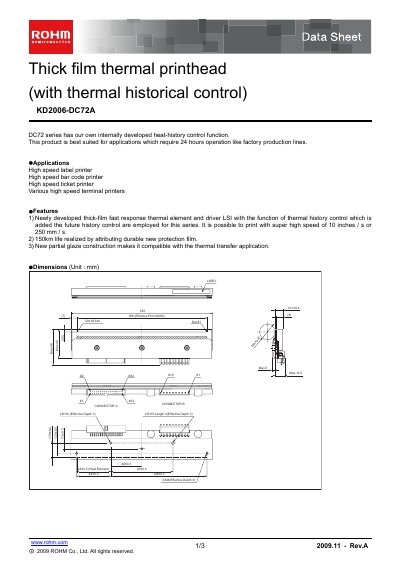

KD2006-DC72A is a thick film thermal printhead with thermal history control function. It is best suited for applications which require 24 hours operation like factory production lines.
The KD2006-DC72A is a thick‑film thermal printhead designed for continuous 24‑hour operation in high‑speed printing equipment such as label, barcode, ticket, and other terminal printers. It incorporates an internally developed heat‑history control function for reliable long‑term use.
Key specifications include a 168 mm effective print width, 0.125 mm dot pitch, 1344 dots per line, and a maximum printing speed of 10 inches / s (250 mm/s). The device operates at 24 V, consumes 0.75 W, and is rated for a running life of about 150 km (≈1×10⁸ pulses).
| Effective printing width | 168 mm |
|---|---|
| Dot pitch | 0.125 mm |
| Total dot number | 1344 dots |
| Average resistance (Rave) | 650 Ω |
| Applied voltage (Vu) | 24 V |
| Applied power (Po) | 0.75 W |
| Print cycle (SLT) | 0.49 ms |
| Maximum clock frequency | 8 MHz |
| Maximum roller diameter | 20.0 mm |
| Running life / pulse life | 150 km (≈1×10⁸ pulses) |
| Operating temperature | 5 to 45 °C |
It is suited for high‑speed label printers, barcode printers, ticket printers, and various high‑speed terminal printers.
The device can print at up to 10 inches per second (250 mm/s).
It operates at a typical voltage of 24 V.
