KD3002-DC92A is a thick film thermal print head developed by ROHM Co., Ltd. It is suitable for high speed label printers, food label printers, high speed ticket printers, high speed terminal printers and other scenarios. The product has the characteristics of high speed, high printing quality, high wear resistance, long life and other characteristics.
The KD3002-DC92A is a 24 V standard thick‑film thermal printhead designed for high‑speed label, food‑label, ticket and terminal printers. It features a low‑abrasion protective coating, high printing speed, and a long operating life.

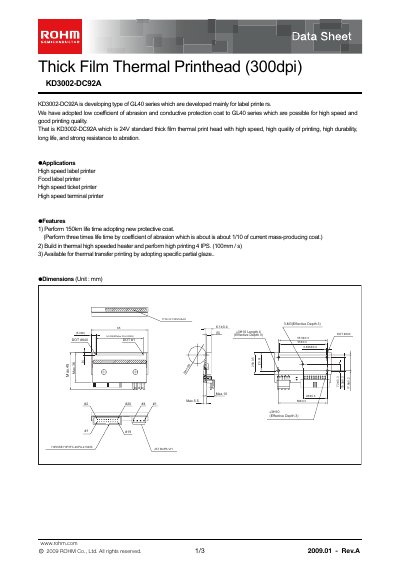

The datasheet details dimensions, electrical characteristics, pin assignments, timing diagrams, and performance curves such as maximum energy and density. It also includes an equivalent circuit diagram and thermistor characteristics for integration into electronic equipment.
| Operating voltage | 24 V |
|---|---|
| Thermistor resistance | 30 kΩ |
| Lifetime | 150 km |
It is suitable for high‑speed label printers, food‑label printers, high‑speed ticket printers, and high‑speed terminal printers.
The device operates at a standard 24 V.
