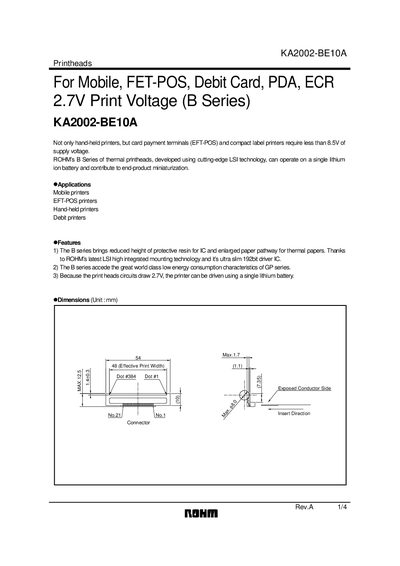

KA2002-BE10A is a 2.7V thermal printhead for mobile, FET-POS, debit card, PDA, and ECR devices developed by ROHM. The low voltage allows it to be powered by a single lithium battery, which contributes to the miniaturization of the end product.
This manual describes the KA2002-BE10A thermal printhead, highlighting its low‑voltage operation (under 8.5 V) and suitability for mobile, EFT‑POS, hand‑held, and debit printers. It outlines the B series features such as reduced height, enlarged paper pathway, and 2.7 V circuit draw for battery‑powered designs.
The document includes an equivalent circuit diagram, detailed pin assignments, timing charts, electrical characteristic curves, and a full set of specifications such as effective printing width, dot pitch, power consumption, and operating temperature. An appendix provides legal notices and contact information.
| Effective printing width | 48 mm |
|---|---|
| Dot pitch | 0.125 mm |
| Total dot number | 384 dots |
| Average resistance value | 176 Ω |
| Applied voltage | 7.2 V |
| Applied power | 0.27 W |
| Print cycle | 1.25 ms |
| Pulse width | 0.49 ms |
| Maximum dots energized simultaneously | 64 dots |
| Maximum clock frequency | 8 MHz |
| Maximum roller diameter | 8.0 mm |
| Running life / pulse life | 50/1108 km/pulses |
| Operating temperature | 0‑50 °C |
Up to 64 dots can be energized simultaneously.
The KA2002‑BE10A supports a maximum clock frequency of 8 MHz.
