The KD2002-DF10A is a high-speed, high-density printing head that can be used for both thermal and thermal transfer printing. It has a print speed of 250mm/s, making it the fastest in its class. This high-speed and high-density printing answers the needs of POS, ATM, KIOSK and ticket printing devices, which are increasingly being called upon to produce graphical output.
The KD2002-DF10A is a compact, medium‑speed thick‑film thermal printhead designed for POS, ATM, kiosk and ticket printers. It supports both thermal and thermal‑transfer printing and achieves a print speed of 250 mm/s, making it the fastest in its class.

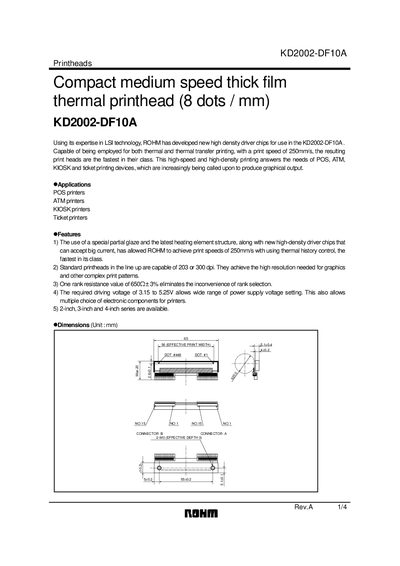

The document lists detailed electrical characteristics, pin assignments, timing charts and dimensional data. Key specifications include a 56 mm effective printing width, 0.125 mm dot pitch, 448‑dot array, and a driving voltage range of 3.15‑5.25 V. Various printhead widths (2‑inch, 3‑inch, 4‑inch) are available, along with typical resistance and power values.
| Effective printing width | 56.0 mm |
|---|---|
| Dot pitch | 0.125 mm |
| Total dot number | 448 dots |
| Average resistance value (Rave) | 650 Ω |
| Applied voltage (Vu) | 24 V |
| Print cycle (SLT) | 0.5 ms |
| Pulse width (Ton) | 0.19 ms |
| Maximum clock frequency | 16 MHz |
| Operating temperature | 5 °C to 45 °C |
The KD2002-DF10A can print at a speed of 250 mm/s.
2‑inch, 3‑inch and 4‑inch series are available.
The required driving voltage is 3.15 V to 5.25 V.
