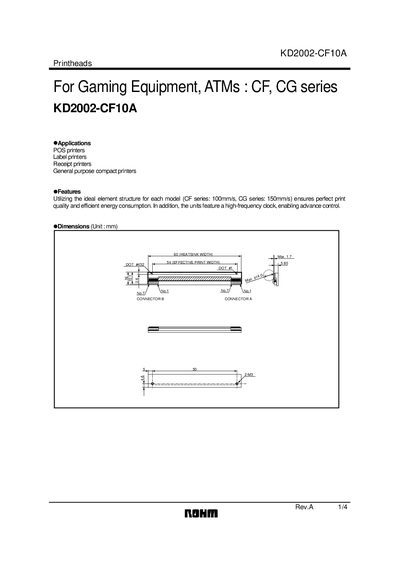

This document is the user manual of KD2002-CF10A printhead, which introduces the application scenarios, features and characteristics, appearance size, pin definitions, etc. of the printhead
The KD2002-CF10A is a compact printhead designed for POS, label, receipt and other general‑purpose printers. It features a 100 mm/s (CF series) or 150 mm/s (CG series) printing speed, high‑frequency clock control, and efficient energy consumption.
The document lists detailed electrical characteristics, pin assignments for connectors A and B, timing diagrams, and a full set of specifications such as effective printing width, dot pitch, maximum clock frequency, and operating temperature.
| Effective printing width | 54 mm |
|---|---|
| Dot pitch | 0.125 mm |
| Total dot number | 432 dots |
| Average resistance value (Rave) | 800 Ω |
| Applied voltage (Vi) | 24.0 V |
| Applied power (Po) | 0.64 W |
| Print cycle (SLT) | 1.25 ms |
| Pulse width (Ton) | 0.28 ms |
| Maximum dots energized simultaneously | 144 dots |
| Maximum clock frequency | 8 MHz |
| Maximum roller diameter | 14.0 mm |
| Running life / pulse life | 50 / 5×10⁷ km/pulses |
| Operating temperature | 0 to 50 °C |
It is used in POS printers, label printers, receipt printers, and general‑purpose compact printers.
The maximum clock frequency is 8 MHz.
The effective printing width is 54 mm.
