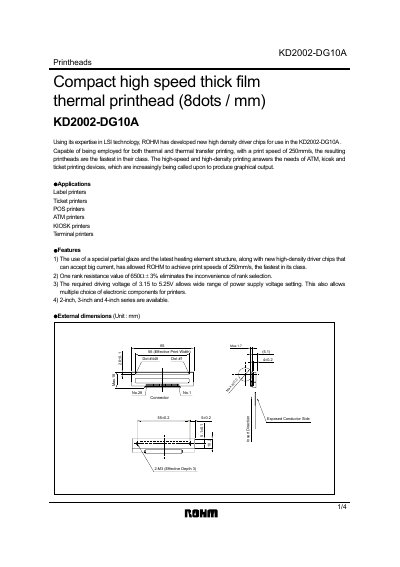

KD2002-DG10A printhead is a high speed thick film thermal printhead, with a print speed of 250mm/s, the fastest in its class. The printhead can be used for both thermal and thermal transfer printing, and is suitable for ATM, kiosk and ticket printers.
The KD2002‑DG10A is a compact, high‑speed thick‑film thermal printhead offering 8 dots/mm resolution and a maximum print speed of 250 mm/s. It supports both thermal and thermal‑transfer printing and is suited for ATMs, kiosks, ticket printers, POS and label printers.
The device features a single resistance value of 650 Ω ± 3%, a driving voltage range of 3.15 V to 5.25 V, and is available in 2‑inch, 3‑inch and 4‑inch series. Electrical characteristic curves, timing diagrams and pin assignments are provided for circuit design.
| Resolution | 8 dots/mm |
|---|---|
| Print speed | 250 mm/s |
| Resistance | 650 Ω ± 3% |
| Driving voltage | 3.15 V – 5.25 V |
| Available widths | 2‑inch, 3‑inch, 4‑inch series |
The printhead can print at up to 250 mm/s.
It operates with a driving voltage between 3.15 V and 5.25 V.
The printhead has a resistance of 650 Ω ± 3%.
