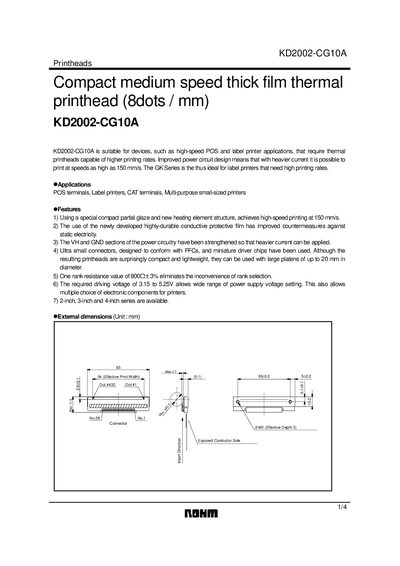

KD2002-CG10A is suitable for high-speed POS and label printer applications that require thermal printheads capable of higher printing rates.
The KD2002-CG10A is a compact medium‑speed thick‑film thermal printhead designed for high‑speed POS and label printer applications. It offers a printing width of 54 mm, a dot pitch of 0.125 mm, and can operate at speeds up to 150 mm/s.
The document includes electrical characteristics, equivalent circuit diagrams, pin assignments, timing charts, and detailed specifications such as a 24 V operating voltage, 0.59 W power consumption, and a maximum clock frequency of 16 MHz. Application notes and dimensional data are also provided.
| Effective printing width | 54 mm |
|---|---|
| Dot pitch | 0.125 mm |
| Total dot number | 432 dots |
| Average resistance value | 800 Ω |
| Applied voltage | 24.0 V |
| Applied power | 0.59 W |
| Print cycle | 1.0 ms |
| Maximum clock frequency | 16 MHz |
| Maximum roller diameter | 20.0 mm |
| Operating temperature | 5 to 45 °C |
It is suitable for POS terminals, label printers, CAT terminals, and multi‑purpose small‑sized printers.
The required driving voltage is 3.15 to 5.25 V.
The dot pitch is 0.125 mm.
