KD2003-CF10A Printhead is a printhead launched by Panasonic. It is suitable for POS printers, label printers, receipt printers and other general purpose compact printers. It has the advantages of high print quality and efficient energy consumption.
The KD2003-CF10A is a compact printhead designed for a range of printing equipment, including POS printers, label printers, receipt printers, and general‑purpose compact printers. It features an ideal element structure for high‑speed printing and efficient energy consumption.

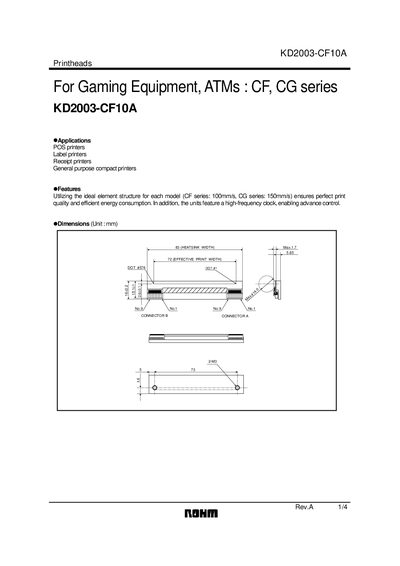

The datasheet lists detailed electrical specifications such as a 72 mm effective printing width, 0.125 mm dot pitch, 8 MHz maximum clock frequency, and an operating temperature range of 5 °C to 45 °C, along with pin assignments and timing charts to aid circuit design.
| Effective printing width | 72.0 mm |
|---|---|
| Dot pitch | 0.125 mm |
| Total dot number | 576 dots |
| Average resistance (Rave) | 800 Ω |
| Applied voltage (Vi) | 24.0 V |
| Applied power (Po) | 0.64 W |
| Print cycle (SLT) | 1.25 ms |
| Pulse width (Ton) | 0.28 ms |
| Maximum clock frequency | 8 MHz |
| Operating temperature | 5 to 45 °C |
It is suitable for POS printers, label printers, receipt printers, and general‑purpose compact printers.
The dot pitch is 0.125 mm.
The printhead can operate up to a maximum clock frequency of 8 MHz.
It operates between 5 °C and 45 °C.
