This product is a print head, which can be used for POS machines, label printers, receipt printers and other devices. It supports 100mm/s and 150mm/s printing speed.

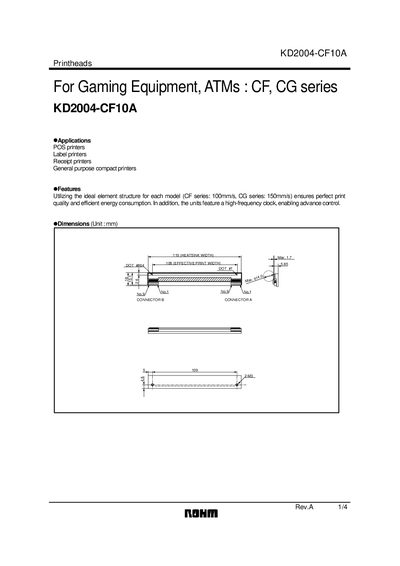

This document describes the KD2004-CF10A printhead used in POS, label, receipt, and general‑purpose compact printers. It lists applications, key features, dimensions, and electrical characteristics.
The datasheet includes equivalent circuit diagrams, pin assignments for connectors A and B, timing charts, characteristic tables, and a set of specifications such as effective printing width, dot pitch, maximum clock frequency, and operating temperature. An appendix contains legal notices and contact information.
| Effective printing width | 108.0 mm |
|---|---|
| Dot pitch | 0.125 mm |
| Total dot number | 864 dots |
| Average resistance value | 800 Ω |
| Applied voltage | 24.0 V |
| Applied power | 0.49 W |
| Print cycle (SLT) | 1.25 ms |
| Pulse width (Ton) | 0.38 ms |
| Maximum dots energized simultaneously | 432 dots |
| Maximum clock frequency | 8 MHz |
| Maximum roller diameter | 14.0 mm |
| Running life / pulse life | 50 / 5×10⁷ km/pulses |
| Operating temperature | 5 to 45 °C |
The effective printing width is 108.0 mm.
The maximum clock frequency is 8 MHz.
