KD3002-DF10A is a high-speed thick-film thermal printhead that uses a new high-density driver chip. It can be used for both thermal and thermal transfer printing, with a print speed of 200mm/s, the fastest in its class. This high-speed and high-density printing meets the needs of ATMs, kiosks, and ticket printers, which are increasingly being called upon to produce graphical output.
The KD3002-DF10A is a compact high‑speed thick‑film thermal printhead designed for label, ticket and terminal printers. It supports both thermal and thermal‑transfer printing and achieves a print speed of 200 mm/s, making it suitable for ATM, kiosk and ticket‑printing devices.

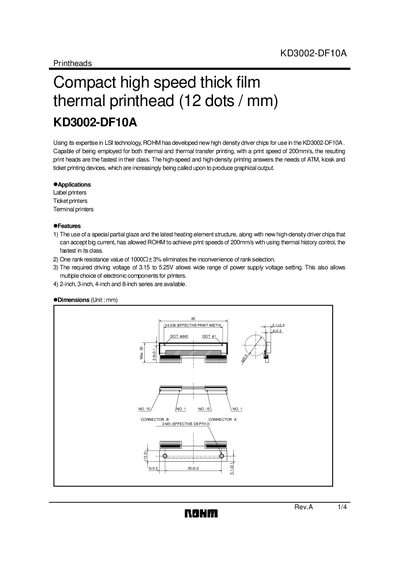

The datasheet details electrical characteristics, pin assignments, dimensions and performance curves. Key specifications such as a 54.208 mm effective printing width, 0.0847 mm dot pitch, and a maximum clock frequency of 16 MHz are provided to aid designers in integrating the printhead into their systems.
| Effective printing width | 54.208 mm |
|---|---|
| Dot pitch | 0.0847 mm |
| Total dot number | 640 dots |
| Average resistance value | 1000 Ω |
| Applied voltage | 24 V |
| Applied power | 0.53 W |
| Print cycle | 0.82 ms |
| Maximum clock frequency | 16 MHz |
| Operating temperature | 5 to 45 °C |
The KD3002-DF10A can print at a speed of 200 mm/s.
It requires a driving voltage between 3.15 V and 5.25 V.
Up to 640 dots can be energized at the same time.
