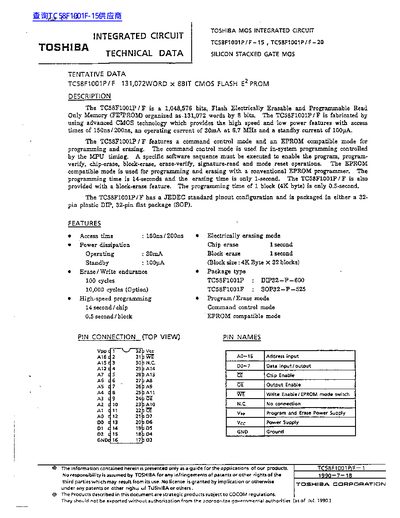

The TC58F1001P/F is a 1,048,576‑bit (1 Mbit) Flash EEPROM organized as 131,072 words × 8 bits. It supports both command‑control mode for in‑system programming and EPROM‑compatible mode for conventional programmers.
Key features include fast access times (150 ns/200 ns), low standby current (100 pA), and multiple package options (32‑pin DIP and 32‑pin SOP). The datasheet provides detailed electrical ratings, timing diagrams, and mechanical drawings for designers.
| Access time | 150 ns / 200 ns |
|---|---|
| Operating current | 30 mA at 6.7 MHz |
| Standby current | 100 pA |
| Supply voltage (VCC) | 4.5 V – 5.5 V |
The read access time is 150 ns and the write access time is 200 ns.
The VCC supply voltage is specified from 4.5 V to 5.5 V.
