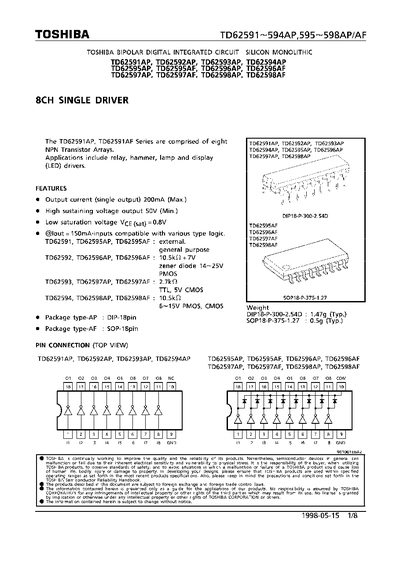

The TD62591~594AP,595~598AP/AF series are 8‑channel NPN transistor array drivers intended for applications such as relay, hammer, lamp and LED drivers. Each device delivers up to 200 mA per output with a minimum sustaining voltage of 50 V and low saturation voltage.
Key specifications include a collector‑emitter voltage rating of 50 V, power dissipation of up to 0.96 W (AP) or 1.47 W (AF), operating temperature range from –40 °C to 85 °C, and package options of DIP‑18 (AP) or SOP‑18 (AF). The datasheet also provides recommended operating conditions, pin connections, and outline drawings.
| Output current (single output) | 200 mA (max) |
|---|---|
| High sustaining voltage output | 50 V (min) |
| Collector‑Emitter Voltage (VcEO) | 50 V |
| Package type (AP) | DIP‑18 pin |
| Package type (AF) | SOP‑18 pin |
Each output can source up to 200 mA (maximum).
AP versions are supplied in a DIP‑18 pin package, while AF versions use an SOP‑18 pin package.
The collector‑emitter voltage rating is 50 V.
