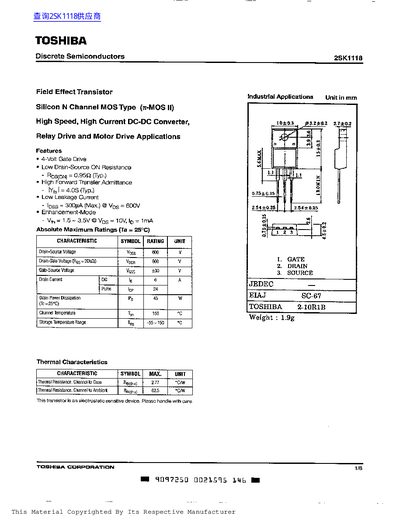

The 2SK1118 is an N‑channel MOSFET designed for high‑speed, high‑current DC‑DC converter, relay drive, and motor drive applications. The document lists its key features such as a 4‑V gate‑drive capability, low on‑resistance, and high forward transfer admittance.
Detailed specifications include absolute maximum ratings, thermal characteristics, electrical characteristics, source‑drain diode ratings, and a safe operating area chart. Handling precautions note that the device is electrostatic‑sensitive and must be protected during assembly.
| Drain‑Source Voltage (VDS) | 600 V |
|---|---|
| Continuous Drain Current (ID) | 6 A |
| Gate Threshold Voltage (VTH) typical | 15‑35 V |
The maximum drain‑source voltage is 600 V.
The gate threshold voltage typically ranges from 15 V to 35 V.
The device can handle a continuous drain current of 6 A.
