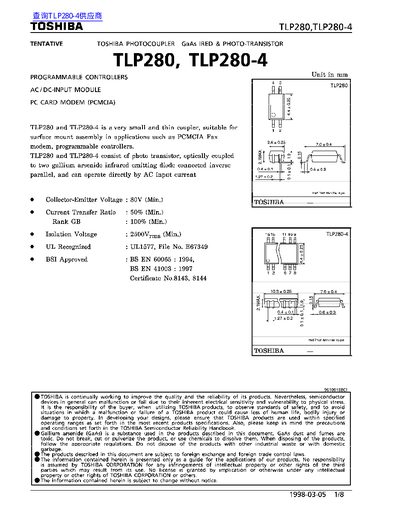

TLP280 and TLP280-4 is a photocoupler produced by TOSHIBA. It is suitable for surface mount assembly and can be used in PCMCIA fax modems, programmable controllers, etc.
The TLP280 and TLP280-4 are very small, thin optocouplers that combine a GaAs infrared emitting diode with a phototransistor. They are designed for surface‑mount assembly and are suitable for applications such as PCMCIA modems and programmable controllers.
The document lists the key electrical ratings, including collector‑emitter voltage, current transfer ratio, isolation voltage, forward current limits, temperature ranges, and switching times, along with pin‑out diagrams and characteristic curves for design reference.
| Collector‑Emitter Voltage (VCEO) | 80 V (Min.) |
|---|---|
| Current Transfer Ratio (CTR) | 50 % (Min.) |
| Isolation Voltage | 2500 V rms (Min.) |
| Forward Current IF (RMS) | 50 mA |
| Storage Temperature Range | -55 °C to 125 °C |
| Operating Temperature Range | -55 °C to 100 °C |
| Lead Soldering Temperature | 260 °C (10 s) |
The device is rated for a minimum collector‑emitter voltage of 80 V.
The isolation voltage is specified as at least 2500 V rms.
It can be stored from –55 °C up to 125 °C.
The minimum current transfer ratio is 50 %.
