SF10A01-G 至 SF10A06-G are glass passivated super fast recovery rectifiers. Features include low forward voltage drop, fast switching for high efficiency, high current capability, high surge current capability, light weight, and low reverse recovery time.
The SF10A01‑G through SF10A06‑G series are glass‑passivated super fast recovery rectifiers offered in a molded plastic TO‑220AC package. They feature low forward voltage drop, high surge current capability, and low reverse leakage, making them suitable for high‑efficiency switching applications.

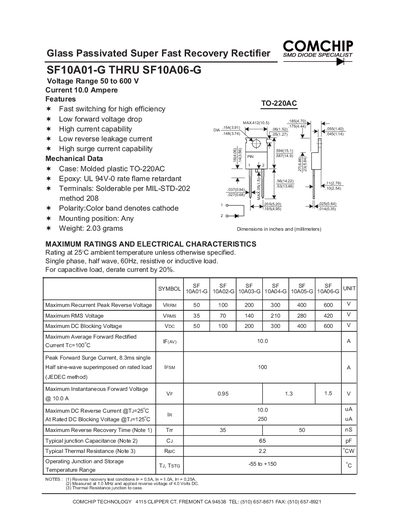

The datasheet lists maximum voltage and current ratings, mechanical dimensions, thermal resistance, and detailed characteristic curves such as forward current derating, instantaneous forward voltage, reverse recovery time, and junction capacitance.
| Voltage Range | 50 to 600 V |
|---|---|
| Case Type | Molded plastic TO-220AC |
| Weight | 2.03 grams |
| Reverse Recovery Time | 35‑50 ns |
| Typical Junction Capacitance | 65 pF |
It uses a molded plastic TO‑220AC case.
The reverse recovery time ranges from 35 ns to 50 ns.
The typical junction capacitance is 65 pF.
