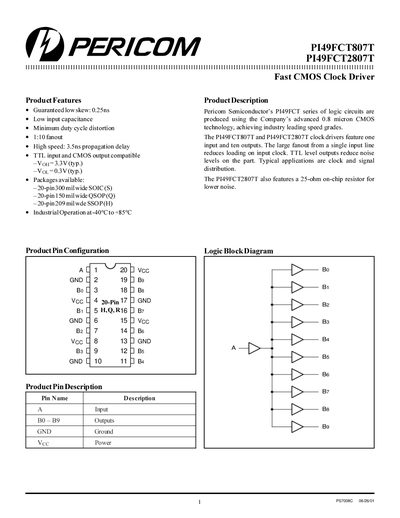

This document is a technical datasheet for the Pericom Semiconductor PI49FCT series, specifically models PI49FCT807T and PI49FCT2807T. These are Fast CMOS Clock Drivers produced using 0.8 micron CMOS technology, designed to achieve industry-leading speed grades with guaranteed low skew.
| Propagation Delay (Max) | 3.5ns |
|---|---|
| Input Capacitance (Typ.) | 6.0 pF |
| Output Skew (Same Package) | 0.25ns |
| Operating Temperature Range | -40°C to +85°C |
| Supply Voltage (Inputs) | -0.5V to +7.0V |
| Fanout Capability | 1:10 |
The device guarantees a low skew of 0.25ns.
Yes, it features TTL input and CMOS output compatibility.
The typical propagation delay is 3.5ns.
