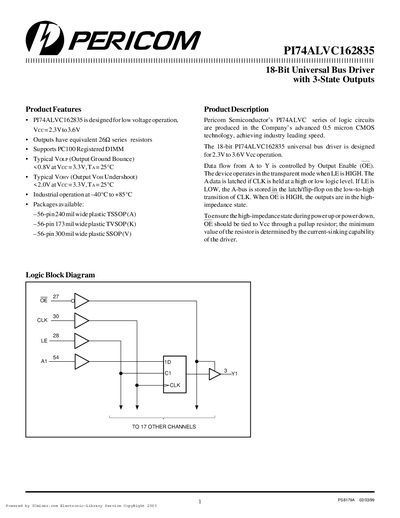

This document describes the features and characteristics of Pericom Semiconductor's PI74ALVC162835 18-bit universal bus driver, which is designed for low voltage operation from 2.3V to 3.6V. It supports PC100 Registered DIMM and has outputs with equivalent 26Ω series resistors. The driver operates in the industrial temperature range from -40°C to +85°C.
The Pericom PI74ALVC162835 is an 18-bit universal bus driver featuring 3-state outputs, specifically designed for low-voltage operation between 2.3V and 3.6V. Produced using advanced 0.5 micron CMOS technology, the device supports PC 100 Registered DIMM applications.
The document provides comprehensive electrical characteristics, including maximum ratings, recommended operating conditions, DC parameters, timing requirements, and switching characteristics over various temperature ranges. It details pin configurations, truth tables, and logic block diagrams to assist in circuit design.
| Supply Voltage Range | 2.3V to 3.6V |
|---|---|
| Operating Temperature | -40°C to +85°C |
The device operates with a supply voltage (Vec) ranging from 2.3V to 3.6V.
The PI74ALVC162835 is an 18-bit universal bus driver.
