H7CX Multifunction Preset Counter has a backlit negative transmissive LCD and a programmable PV color to visually alert when output status changes.
The H7CX series is a multifunction preset counter that can be configured as a 1‑stage, 2‑stage, total, batch, dual counter or tachometer. It offers backlit negative‑transmissive LCD display, programmable PV colors, finger‑safe terminals and NEMA4/IP66 protection for harsh industrial environments.

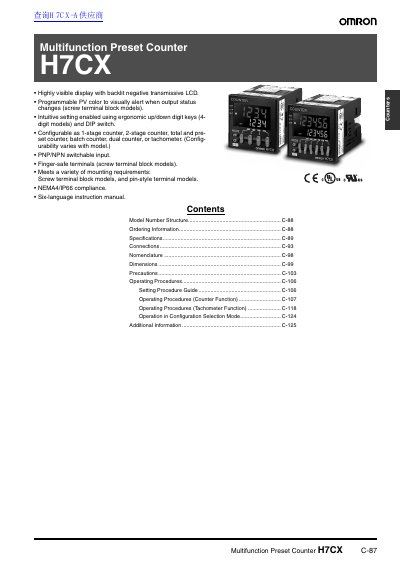

This manual includes model numbering, ordering information, detailed specifications, connection diagrams, dimensions, safety precautions, operating procedures, setting guides and additional reference data to help users install, configure and maintain the H7CX counters.
| Supply Voltage | 100 to 240 VAC (50/60 Hz) or 12 to 24 VDC |
|---|---|
| Power Consumption | Approx. 9.2 VA at 264 VAC |
| Display | 7‑segment negative transmissive LCD, programmable red/green characters |
| Maximum Counting Speed | 30 Hz or 5 kHz selectable |
| Ingress Protection | IP66, NEMA Type 4 |
It can be powered from 100 to 240 VAC (50/60 Hz) or from 12 to 24 VDC, depending on the model.
Yes, the device meets IP66 and NEMA Type 4 protection standards.
The manual is provided in six languages.
The counter can operate at either 30 Hz or up to 5 kHz, selectable by the user.
