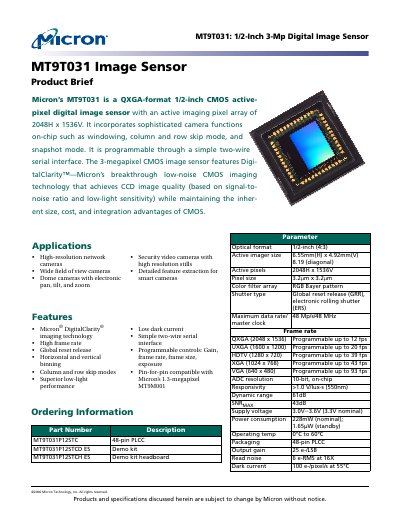

The MT9T031 is a 1/2‑inch QXGA‑format CMOS image sensor offering a 2048 × 1536 pixel array and a variety of camera functions such as windowing, column/row skip, and snapshot mode. It targets high‑resolution network cameras, PTZ cameras, and security video cameras that also need still‑image capability.
Key features include a simple two‑wire serial interface for programming, 10‑bit on‑chip ADC, programmable gain and black‑level calibration, and flexible windowing that supports multiple resolutions from QXGA down to VGA. Electrical specifications provide a 3.0 V–3.6 V supply range, 228 mW typical power consumption, and a maximum data rate of 48 Mp/s at 48 MHz.
| Optical format | 1/2-inch (4:3) |
|---|---|
| Active pixels | 2048H x 1536V |
| Pixel size | 3.2 µm x 3.2 µm |
| ADC resolution | 10‑bit |
| Supply voltage | 3.0 V – 3.6 V (3.3 V nominal) |
| Power consumption | 228 mW (nominal); 1.65 µW (standby) |
| Maximum data rate | 48 Mp/s at 48 MHz |
| Package type | 48‑pin PLCC |
The sensor is programmed through a simple two‑wire serial interface.
It is supplied in a 48‑pin PLCC package.
The device operates from 3.0 V to 3.6 V, with a nominal 3.3 V supply.
