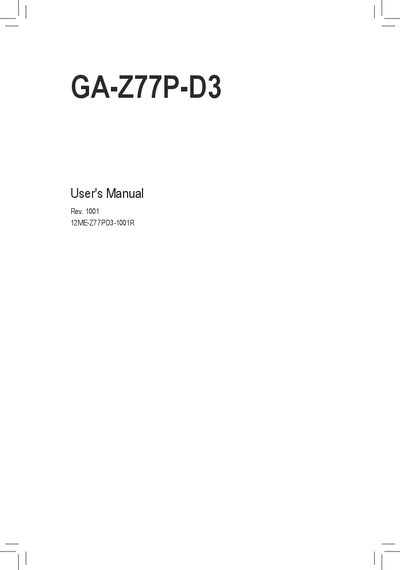

This is the user's manual for GA-Z77P-D3 motherboard, which introduces the features and usage of the motherboard.
This manual covers all aspects of the GA-Z77P-D3 motherboard, including box contents, layout, block diagram, hardware installation, BIOS configuration, driver installation, and unique features. It is intended for end‑users and system builders who need detailed guidance for assembling and configuring the board.
The document also includes an appendix with contact information for Gigabyte technical support worldwide, as well as regulatory statements and warranty details. Each chapter provides step‑by‑step procedures, safety warnings, and helpful diagrams to ensure proper installation and operation.
| CPU Support | Intel® Core i7/i5/i3, Pentium, Celeron (LGA1155) |
|---|---|
| Chipset | Intel® Z77 Express |
| Memory | 4 DDR3 DIMM slots, up to 32 GB, 1600/1333/1066 MHz |
| Onboard Graphics | 1 HDMI port, max resolution 1920×1200 |
| Audio Codec | Realtek ALC887, 2/4/5.1/7.1‑channel HD Audio |
| LAN | Atheros/Realtek GbE LAN (10/100/1000 Mbit) |
| Expansion Slots | 1 PCIe x16 (x16), 1 PCIe x16 (x4), 2 PCIe x1, 2 PCI slots |
The revision number is printed on the motherboard as "REV: X.X" (e.g., "REV: 1.0").
It supports DDR3 1600/1333/1066 MHz memory modules, up to 32 GB across four DIMM slots.
