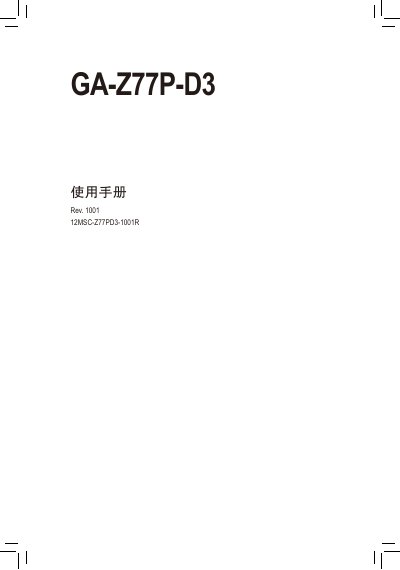

GA-Z77P-D3 User Manual introduces the hardware installation, BIOS setup, driver installation and unique function introduction of the motherboard.
This manual covers everything needed to install and configure the GA-Z77P-D3 motherboard, including hardware installation, CPU and memory setup, and connector descriptions. Detailed sections explain BIOS settings, driver installation, and unique features such as Xpress Recovery2 and Intel Rapid Start.
Additional information includes product specifications, safety precautions, and a comprehensive appendix with warranty, service contacts, and support resources for Gigabyte customers. This manual is written in Chinese.
| CPU socket | LGA1155 |
|---|---|
| Chipset | Intel Z77 |
| Memory slots | 4 DDR3 DIMM slots, up to 32 GB |
| Audio codec | Realtek ALC887, supports 2/4/5.1/7.1 channels |
| Network interface | Atheros/Realtek GbE 10/100/1000 Mbit |
Power off the system, align the CPU’s notch with the socket’s key, place the CPU, apply thermal paste, and attach the cooling fan as described in the CPU installation section.
The board offers eight USB ports: a mix of USB 2.0 and USB 3.0/2.0 connectors.
