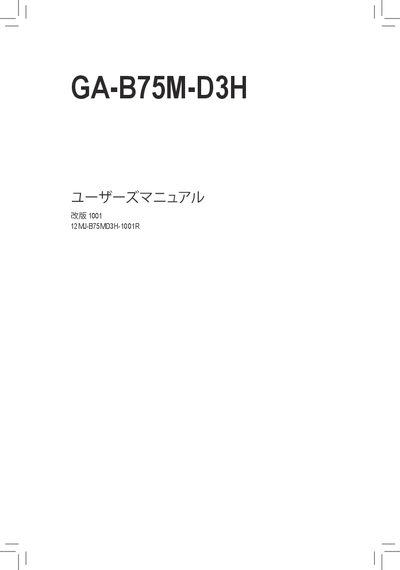

Gigabyte GA-B75M-D3H Motherboard User Manual

This is the user manual for GA-B75M-D3H motherboard, which introduces the hardware installation and BIOS setup of the motherboard.

Brand: Gigabyte
Category: Motherboard
Document type: User Manual
Language: Japanese
Pages: 44
File format: PDF
File size: 20.3 MB
Published: 11 May, 2012
Updated: 30 September, 2023
Model: GA-B75M-D3H
MD5 checksum: DAC4DC02E7A3EE3591DFC0B223C085C7
PDF: Gigabyte GA-B75M-D3H Motherboard User Manual PDF

About this manual

This manual covers the installation, configuration, and operation of the Gigabyte GA‑B75M‑D3H motherboard.

It includes detailed sections on CPU and memory installation, BIOS features, peripheral connections, power management, and hardware specifications. This manual is written in Japanese.

What's inside

Overview
CPU Installation
Memory Installation
BIOS Features
Peripherals
Power Management
Save & Exit
Hardware Connectors
Specifications

Specifications

CPU socket	LGA1155
Chipset	Intel B75
Memory type	DDR3 1600/1333/1066 MHz
PCI Express slots	x16, x4, x1
SATA ports	1 × 6Gb/s, 5 × 3Gb/s
USB ports	4 × USB 3.0, 8 × USB 2.0
LAN	Realtek GbE 10/100/1000
Audio codec	Realtek ALC887 7.1

Frequently asked questions

What CPU socket does the GA‑B75M‑D3H use?

It uses an LGA1155 socket.

How many USB 3.0 ports are provided?

The board provides four USB 3.0 ports.

Which audio codec is integrated on the board?

It uses the Realtek ALC887 7.1‑channel audio codec.

Download PDF (20.3 MB)
