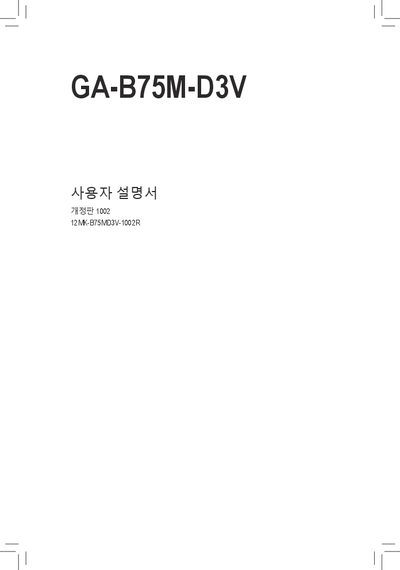

This document is the user manual for the GA-B75M-D3V motherboard, which provides information on the installation, BIOS setup, driver installation, etc.
This manual covers the Gigabyte GA‑B75M‑D3V motherboard, detailing its layout, connectors, and configuration options. It includes safety declarations, compliance information, and a full table of contents for quick navigation.
Key sections describe the BIOS features, power management, CPU and memory support, expansion slots, storage interfaces, USB ports, and Ethernet connectivity, helping users install and operate the board safely and efficiently.
| CPU socket | LGA1155 |
|---|---|
| Chipset | Intel B75 Express |
| Supported memory type | DDR3 1600/1333/1066 MHz |
| PCI Express slots | 1 × PCIe x16, 2 × PCIe x1 |
| LAN controller | Atheros Gigabit Ethernet (10/100/1000 Mbit) |
It uses an LGA1155 socket.
The board is built around the Intel B75 Express chipset.
It supports DDR3 memory at 1066 MHz, 1333 MHz, and 1600 MHz.
