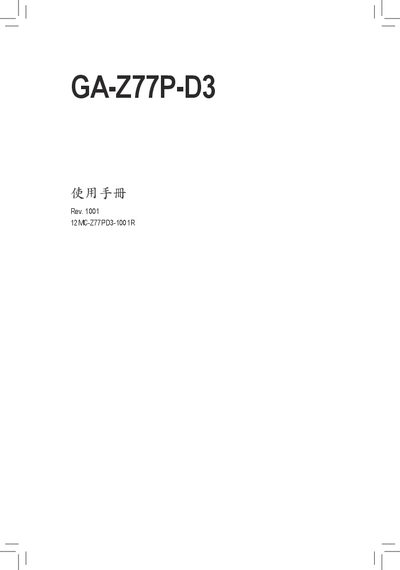

GA-Z77P-D3 User Manual, introduces the information of hardware installation, BIOS configuration, driver installation and unique features of the motherboard.
This manual provides step‑by‑step guidance for installing the GA‑Z77P‑D3 motherboard, configuring the BIOS, and installing drivers and software. It also lists the accessories supplied with the board and offers troubleshooting tips.
Additional sections cover hardware specifications, connector layouts, and contact information for Gigabyte technical support worldwide.
| PCI Express x16 | Available |
|---|---|
| CPU Socket | LGA1155 |
| CPU Clock Adjustment | ±100 MHz |
| Memory Type | DDR3 1600/1333/1066 MHz |
| Memory Channels | Dual Channel |
| USB Ports | USB 3.0 / USB 2.0 |
| PCI Express x1 | Available |
The package contains one GA‑Z77P‑D3 motherboard, a driver CD, the user manual, a hardware installation guide, two SATA 6 Gb/s cables, and one rear I/O shield.
Use the Q‑Flash utility from the BIOS menu (option 4‑2‑1) to load a new BIOS image from a USB drive or other media.
