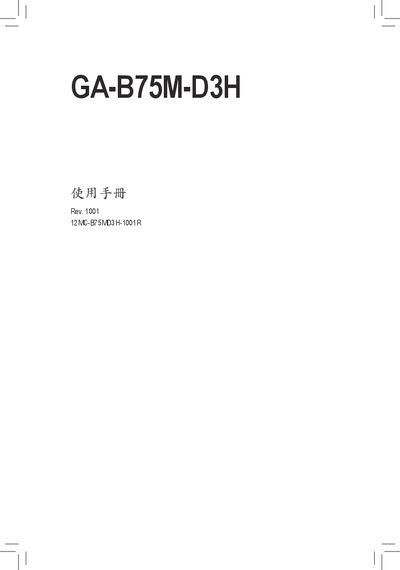

This document is the user manual for GA-B75M-D3H motherboard, which includes hardware installation, BIOS configuration, and driver installation. The motherboard supports DDR3 1600 MHz with 22nm (Ivy Bridge) CPU.
This manual covers safety compliance, FCC and CE declarations, and warranty terms for the GA‑B75M‑D3H motherboard. It includes detailed hardware installation instructions, precautions for handling components, and guidance on BIOS configuration.
The document also lists the motherboard’s technical specifications such as supported CPUs, memory capacity, expansion slots, storage interfaces, USB ports, audio and video outputs, and networking features. An accessories checklist and warranty conditions for Taiwan customers are provided at the end. This manual is written in Chinese.
| CPU socket | LGA1155 |
|---|---|
| Supported CPUs | Intel Core i7/i5/i3, Pentium, Celeron |
| Memory slots | 4 DDR3 DIMM slots, up to 32 GB |
| Memory speed | DDR3 1600/1333/1066 MHz |
| SATA ports | 1 × 6 Gb/s, 5 × 3 Gb/s |
| LAN | Realtek GbE 10/100/1000 Mbps |
| Audio | Realtek ALC887, HD Audio, 2.1 channel, S/PDIF out |
It uses an LGA1155 socket for Intel processors.
The board has four DDR3 DIMM slots and can support up to 32 GB of memory.
