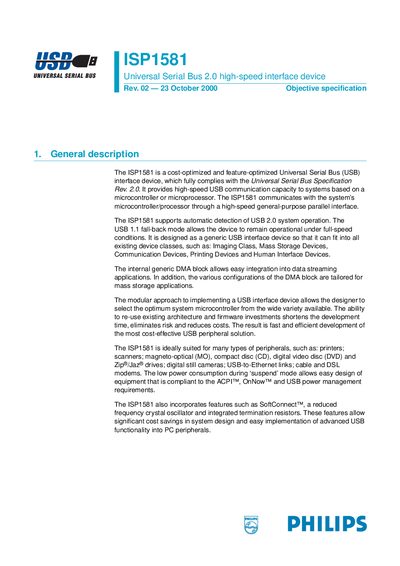

The ISP1581 is a cost-optimized and feature-optimized Universal Serial Bus (USB) interface device, which fully complies with the Universal Serial Bus Specification Rev. 2.0. It provides high-speed USB communication capacity to systems based on a microcontroller or microprocessor. The ISP1581 communicates with the system’s microcontroller/processor through a high-speed general-purpose parallel interface. The ISP1581 supports automatic detection of USB 2.0 system operation. The USB 1.1 fall-back mode allows the device to remain operational under full-speed conditions. It is designed as a generic USB interface device so that it can fit into all existing device classes, such as: Imaging Class, Mass Storage Devices, Communication Devices, Printing Devices and Human Interface Devices. The internal generic DMA block allows easy integration into data streaming applications. In addition, the various configurations of the DMA block are tailored for mass storage applications. The modular approach to implementing a USB interface device allows the designer to select the optimum system microcontroller from the wide variety available. The ability to re-use existing architecture and firmware investments shortens the development time, eliminates risk and reduces costs. The result is fast and efficient development of the most cost-effective USB peripheral solution.
The ISP1581 is a cost‑optimized USB 2.0/1.1 interface controller that complies fully with the USB Specification Rev. 2.0. It provides high‑speed communication to microcontroller‑ or microprocessor‑based systems via a parallel interface and supports automatic USB‑2.0 mode detection with a USB‑1.1 fallback.
The device includes an integrated 12 MHz crystal oscillator with PLL, 8 kB of internal FIFO memory, up to 14 configurable USB endpoints plus two fixed control endpoints, and a low‑suspend current below 500 µA, making it suitable for a wide range of peripherals such as printers, scanners, mass‑storage drives, cameras and network adapters.
| Operating temperature range | -40 °C to +85 °C |
|---|---|
| Package | LQFP64 (64‑lead quad flat package) |
| Supply voltage | 3.0 V or 5.0 V |
| USB endpoints | Up to 14 programmable + 2 fixed control endpoints |
| Crystal oscillator | 12 MHz with integrated PLL |
| Suspend current | < 500 µA |
The device operates from –40 °C up to +85 °C.
It supports up to 14 programmable USB endpoints plus 2 fixed control endpoints.
The ISP1581 is supplied in an LQFP64 (64‑lead quad flat) package.
The suspend current is below 500 µA.
