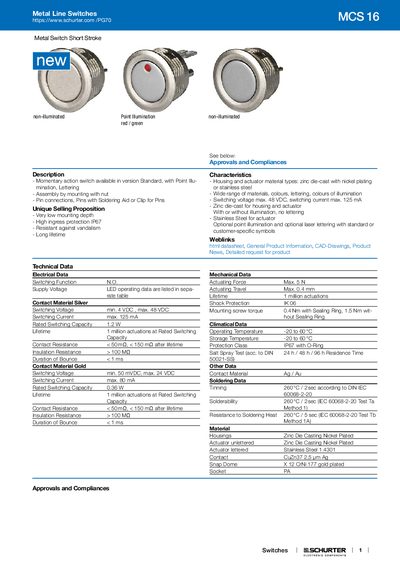

Technical data sheet for Schurter MCS 16 metal line switch covering specifications, dimensions, approvals and ordering information.
The Schurter MCS 16 metal line switch is a short‑stroke, momentary action switch available in non‑illuminated and point‑illuminated versions. It offers a low mounting depth, IP67 protection, vandal‑resistance and a lifetime of one million actuations.
The document provides detailed electrical and mechanical specifications, material options, approval listings (RoHS, REACH, IEC/UL 60950) and ordering indices for various lettering and illumination configurations. Packaging details and accessory information are also included.
| Maximum Switching Voltage | 48 VDC |
|---|---|
| Maximum Switching Current | 125 mA |
| Contact Resistance | < 50 mΩ |
| Insulation Resistance | > 100 MΩ |
| Actuating Force | Max. 5 N |
| Actuating Travel | Max. 0.4 mm |
| Lifetime | 1 million actuations |
| Protection Class | IP67 |
| Operating Temperature | -20 to 60 °C |
| Mounting Screw Torque (with sealing ring) | 0.4 Nm |
The maximum switching voltage is 48 VDC.
It is protected to IP67.
The switch operates from –20 °C to 60 °C.
It is rated for 1 million actuations.
