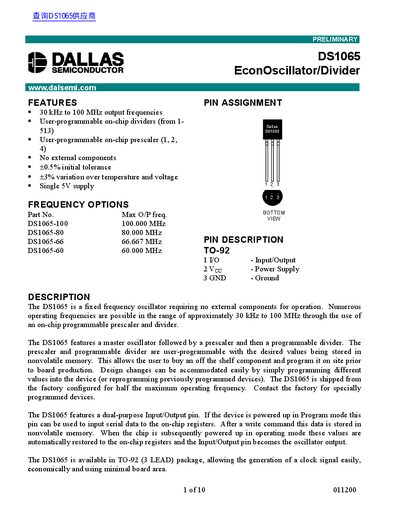

The DS1065 is a fixed-frequency oscillator that requires no external components for operation. Numerous operating frequencies are possible in the range of approximately 30 kHz to 100 MHz through the use of an on-chip programmable prescaler and divider. The DS1065 features a master oscillator followed by a prescaler and then a programmable divider. The prescaler and programmable divider are user-programmable with the desired values being stored in nonvolatile memory. This allows the user to buy an off the shelf component and program it on site prior to board production. Design changes can be accommodated easily by simply programming different values into the device (or reprogramming previously programmed devices). The DS1065 is shipped from the factory configured for half the maximum operating frequency. Contact the factory for specially programmed devices. The DS1065 features a dual-purpose Input/Output pin. If the device is powered up in Program mode this pin can be used to input programming commands or read output status.
The DS1065 is a fixed‑frequency oscillator that requires no external components. It provides user‑programmable on‑chip dividers and a prescaler, delivering output frequencies from 30 kHz to 100 MHz with a single 5 V supply. The device is supplied in a TO‑92 package and includes a dual‑purpose I/O pin that serves as both programming input and oscillator output.
The manual details the pin description, register map, power‑on reset sequence, programming method using a 1‑Wire‑compatible interface, transaction timing, default register values, and full electrical characteristics. It also lists absolute maximum ratings and typical performance parameters such as supply voltage tolerance and output duty cycle.
| Supply Voltage (VCC) | 5 V (4.75 V – 5.25 V) |
|---|---|
| Output Frequency Range | 30 kHz – 100 MHz |
Connect a pull‑up resistor of about 5 kΩ to the IN/OUT pin before powering up; this pulls the pin above V_IH and puts the device into programming mode.
