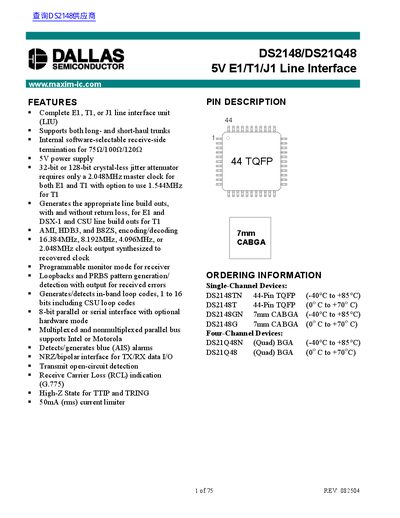

This document describes a complete E1, T1, or J1 line interface unit (LIU) that supports both long- and short-haul trunks. It features internal software-selectable receive-side termination, multiple clock outputs, and encoding/decoding capabilities.
The DS2148 is a complete selectable E1 or T1 Line Interface Unit (LIU) designed for short- and long-haul applications. It supports both long- and short-haul trunks and includes internal software-selectable receive-side termination for 75Ω, 100Ω, or 120Ω. The device operates with a 5V power supply and requires only a 2.048MHz master clock for both E1 and T1 applications, with an option to use 1.544MHz for T1.
| Power Supply | 5V |
|---|---|
| Clock Requirement | 2.048MHz |
| Jitter Attenuator | 32-bit or 128-bit |
| Interface Types | E1, T1, or J1 |
| Encoding Support | AMI, HDB3, B8ZS |
| Current Limiter | 50mA (rms) |
The device supports E1, T1, or J1 line interface units.
It requires only a 2.048MHz master clock for both E1 and T1.
Yes, it supports an 8-bit parallel or serial interface with optional hardware mode.
