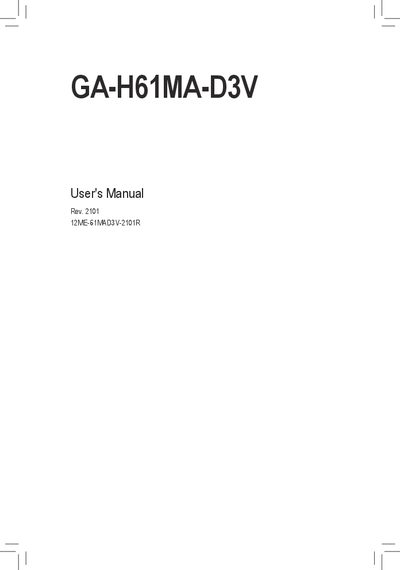

GA-H61MA-D3V User's Manual, introduces the hardware installation, system installation, software installation and other information of the motherboard
This manual explains how to install and configure the Gigabyte GA-H61MA-D3V motherboard. It covers safety precautions, hardware installation, BIOS configuration, driver installation, and detailed product specifications.
The document includes a hardware installation guide, BIOS setup instructions, driver installation notes, a full list of specifications (CPU support, memory, storage, USB, LAN, audio, graphics, and expansion slots), and regulatory statements required for compliance.
| CPU Support | Intel Core i7/i5/i3, Pentium, Celeron (LGA1155) |
|---|---|
| Chipset | Intel H61 Express |
| Memory | 2x DDR3 DIMM sockets, up to 16 GB, DDR3 1333/1066/800 MHz, dual‑channel |
| SATA Connectors | 4x SATA 3 Gb/s, 2x SATA 6 Gb/s (RAID 0/1 supported) |
| USB Ports | Up to 8 USB 2.0/1.1 ports, 2 USB 3.0/2.0 ports on back panel |
| LAN | 1x Realtek/Atheros Gigabit Ethernet (10/100/1000 Mbit) |
| Audio | Realtek/VIA HD audio codec, 2/4/5.1/7.1‑channel |
| Graphics Outputs | 1x D‑Sub, 1x DVI‑D (max 1920×1200) |
| Expansion Slots | 1 PCIe x16, 3 PCIe x1 |
The revision number appears as "REV: X.X", for example "REV: 1.0".
It supports up to 16 GB of DDR3 memory in 2 DIMM slots, with speeds of 1333/1066/800 MHz, dual‑channel, non‑ECC, and XMP modules.
