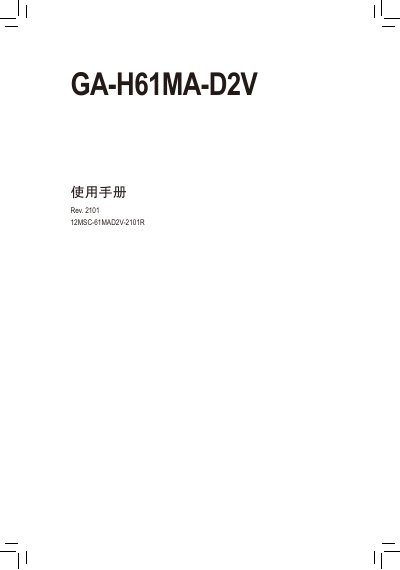

This manual guides users through installing the GA-H61MA-D2V motherboard, configuring the BIOS, and installing drivers. It includes safety precautions, hardware installation procedures, and detailed connector descriptions.
The document also lists the product specifications, such as supported CPUs, memory types, expansion slots, and peripheral interfaces, and provides warranty and service information for Gigabyte customers. This manual is written in Chinese.
| CPU socket | LGA1155 |
|---|---|
| Memory slots | 2 DDR3 DIMM slots, up to 16 GB |
| Supported memory speed | DDR3 1333/1066/800 MHz |
| LAN interface | Realtek/Atheros GbE 10/100/1000 Mbit |
| SATA ports | 4 × SATA 3 Gb/s |
| USB 2.0 ports | Up to 8 rear and internal ports |
| USB 3.0 ports | 2 rear USB 3.0/2.0 ports |
| PCI Express slots | 1 × PCIe x16, 3 × PCIe x1 |
| Dual BIOS | Supported |
It uses an LGA1155 socket for compatible Intel processors.
The board provides two USB 3.0/2.0 ports on the rear panel.
It supports up to 16 GB of DDR3 memory across its two DIMM slots.
Yes, the board includes DualBIOS™ for backup BIOS functionality.
