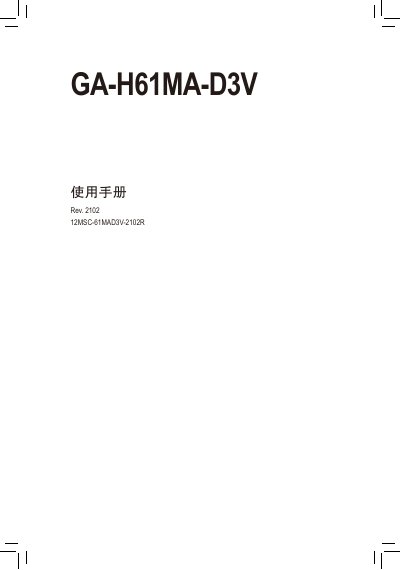

GA-H61MA-D3V is a motherboard produced by Gigabyte Technology Co., Ltd. This motherboard features easy installation and supports various hardware devices such as central processors and memory modules.
This manual guides users through hardware installation, BIOS settings, driver installation, and includes detailed specifications for the GA-H61MA-D3V motherboard. Safety warnings and proper handling procedures are also covered to protect both the hardware and the installer.
The document contains connector diagrams, jumper settings, and troubleshooting information, helping users configure CPU, memory, storage, and peripheral devices correctly on this Micro‑ATX board. This manual is written in Chinese.
| CPU socket | LGA1155 |
|---|---|
| Memory slots | 2 DDR3 DIMM slots, up to 16 GB |
| Supported memory speed | DDR3 1333/1066/800 MHz, non‑ECC, XMP |
| PCI Express slots | 1 × PCIe x16, 3 × PCIe x1 |
| 3个PCI Express x1 插槽 | |
| SATA ports | 4 × SATA 3Gb/s, 2 × SATA 6Gb/s |
| 2 个SATA 6Gb/s插座 | |
| USB ports | 8 × USB 2.0/1.1, 2 × USB 3.0/2.0 |
| 最多支持 2个USB 3.0/2.0连接端口 | |
| LAN | Realtek/Atheros GbE 10/100/1000 Mbit |
| Audio | Realtek/VIA HD audio, supports 2/4/5.1/7.1 channels |
| BIOS | AMI EFI BIOS with DualBIOS™ |
| 支持 DualBIOS™ |
It has two DDR3 DIMM slots that support up to 16 GB of memory.
The board uses an LGA1155 socket for compatible Intel processors.
The motherboard provides four SATA 3Gb/s ports and two SATA 6Gb/s ports.
Yes, it includes two rear‑panel USB 3.0/2.0 ports.
