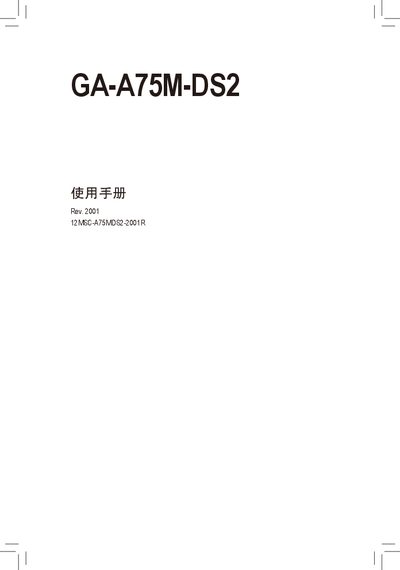

This document is the user manual for GA-A75M-DS2 motherboard, which introduces the installation, BIOS settings, driver installation, etc. of the motherboard.
This manual guides users through the installation and setup of the Gigabyte GA-A75M-DS2 motherboard. It includes a detailed layout diagram, connector and jumper descriptions, and a complete list of specifications.
The document covers hardware installation steps, BIOS program settings, driver installation procedures, and an appendix with additional resources such as SATA configuration and warranty information. This manual is written in Chinese.
| Chipset | AMD A75 |
|---|---|
| Memory slots | 2 DDR3 DIMM slots (1.5 V) |
| Maximum memory | 32 GB |
| Supported memory speed | DDR3 2400 (O.C.)/1866/1600/1333/1066 MHz |
| Display outputs | 1 × D‑Sub, 1 × DVI‑D |
| Audio codec | Realtek/VIA HD audio chip |
| LAN | Realtek/Atheros GbE 10/100/1000 Mbit |
| Expansion slots | 1 × PCI Express x16, 1 × PCI Express x1, 1 × PCI |
| SATA ports | 4 × SATA 6 Gb/s |
| USB ports | 8 × USB 2.0/1.1, 4 × USB 3.0/2.0 |
The motherboard supports up to 32 GB of DDR3 memory.
It provides up to four USB 3.0/2.0 ports (two on the rear panel and two internal).
The board includes four SATA 6 Gb/s connectors.
