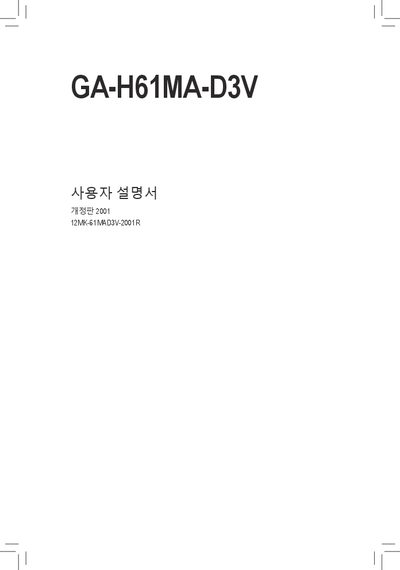

GA-H61MA-D3V User Manual, introduces the hardware installation, BIOS configuration settings, driver installation and other content, detailed introduction to the board's features.
This manual documents the GA-H61MA-D3V motherboard, including its compliance with safety and electromagnetic standards such as EN 6100‑22, EN 6100‑28, and FCC Part 15 Class B. It also contains the Declaration of Conformity and warranty information.
The guide lists the hardware specifications: LGA1155 socket, support for Intel® Core™ i7/i5/i3, Pentium and Celeron CPUs, DDR3 1333/1066/800 MHz dual‑channel memory up to 16 GB, ATX 12V form factor, multiple PCI Express slots, SATA 3 Gb/s and 6 Gb/s ports, and USB 3.0/2.0 and USB 2.0/1.1 connectors. BIOS features, power‑management options, and peripheral interfaces are also described.
| CPU socket | LGA1155 |
|---|---|
| Supported CPUs | Intel® Core™ i7, i5, i3, Pentium, Celeron |
| Memory type | DDR3 1333/1066/800 MHz Dual Channel |
| PCI Express slots | 1 × PCIe x16, 1 × PCIe x1, 2 × PCIe x4 |
| SATA ports | 4 × SATA 3 Gb/s, 2 × SATA 6 Gb/s |
| USB ports | 2 × USB 3.0/2.0, 8 × USB 2.0/1.1 |
| Safety standards | EN 6100‑22, EN 6100‑28, FCC Part 15 Class B |
It complies with EN 6100‑22, EN 6100‑28 and FCC Part 15 Class B requirements.
The motherboard uses an LGA1155 socket.
It provides four SATA 3 Gb/s ports and two SATA 6 Gb/s ports.
