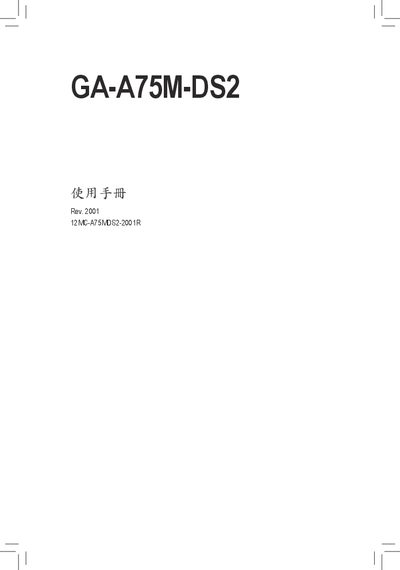

This document is the user manual for GA-A75M-DS2 motherboard, which introduces the hardware installation, BIOS configuration, driver installation, etc.
This manual covers the hardware installation procedures for the GA-A75M-DS2 motherboard, including safety precautions, connector descriptions, and component placement. It also details BIOS configuration options, power management settings, and troubleshooting advice.
Technical specifications are listed, such as supported CPUs, memory configurations, video outputs, networking, expansion slots, storage interfaces, and USB ports. Warranty and regulatory compliance information are provided at the end of the document. This manual is written in Chinese.
| Supported processors | AMD A系列, Athlon, Sempron |
|---|---|
| Memory slots | 2 DDR3 DIMM slots, up to 32 GB |
| Memory speed | DDR3 1066/1333/1600/1866/2400 MHz |
| Video outputs | 1 D‑Sub, 1 DVI‑D (max 1920×1200) |
| LAN | Realtek/Atheros GbE 10/100/1000 Mb/s |
| PCI Express slots | 1 × PCIe x16, 1 × PCIe x1 |
| SATA ports | 4 × SATA 6 Gb/s (RAID 0/1/10/JBOD) |
| USB ports | 8 × USB 2.0, 4 × USB 3.0 |
| Power connectors | 24‑pin ATX, 4‑pin ATX 12 V |
The board has two DDR3 DIMM slots that together support up to 32 GB of RAM.
It includes one D‑Sub and one DVI‑D connector, with DVI‑D supporting up to 1920×1200 resolution.
The integrated Realtek/Atheros GbE LAN supports 10/100/1000 Mb/s.
