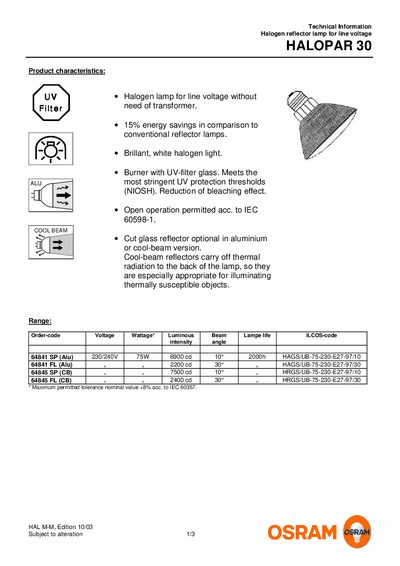

This file is about the technical information of HALOPAR 30 HAL M-M, including product features and light data
The OSRAM HALOPAR 30 is a halogen reflector lamp designed for line voltage operation without a transformer. The sheet provides product characteristics such as energy savings, UV‑filter glass, and optional cool‑beam reflectors that reduce thermal radiation on illuminated objects.
The document lists detailed technical data including voltage, wattage, luminous intensity, beam angle, lamp life, dimensions, operating temperature limits, and safety distances. It also notes environmental considerations, such as UV‑radiation limits and disposal instructions, and references IEC standards for compliance.
| Voltage | 230/240 V |
|---|---|
| Luminous intensity (SP Alu) | 6900 cd |
| Overall length | 90.5 mm |
| Reflector diameter | 97.0 mm |
| Maximum permitted temperature (lamp surface) | 210 °C |
The maximum permitted temperature of the lamp surface is 210 °C according to IEC 60432‑1.
No, the HALOPAR 30 is not suitable for exterior use.
It provides about 15 % energy savings compared to conventional reflector lamps.
The ALU version has a colour temperature of approximately 2900 K ± 100 K.
