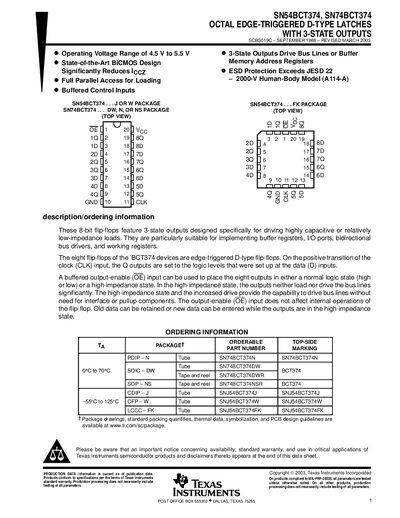

SN54BCT374, SN74BCT374 is an 8-bit D flip-flop produced by Texas Instruments. Its feature is that it has 3-state outputs, which can be used to drive high-capacitance or relatively low-impedance loads. It is suitable for implementing buffer registers, I/O ports, bidirectional bus drivers and working registers.
The SN54BCT374 is an octal edge‑triggered D‑type latch featuring three‑state outputs, intended for buffer registers, I/O ports, bidirectional bus drivers, and working registers. It operates from a 4.5 V to 5.5 V supply and offers high‑drive capability for low‑impedance loads.
The document includes ordering details for various package options, recommended operating conditions, timing requirements, and mechanical drawings. Additional product information and the latest availability can be found on the Texas Instruments website.
| Supply voltage (VCC) | 4.5 V – 5.5 V |
|---|---|
| High‑level input voltage (VIH) | 2 V |
| Low‑level input voltage (VIL) | 0.8 V |
| Operating temperature range | -55 °C – 125 °C |
| High‑level output current (I_OH) | 15 mA |
| Low‑level output current (I_OL) | 48 mA – 64 mA |
The device is specified to operate from 4.5 V to 5.5 V.
OE should be tied to VCC through a pull‑up resistor to ensure the high‑impedance state.
