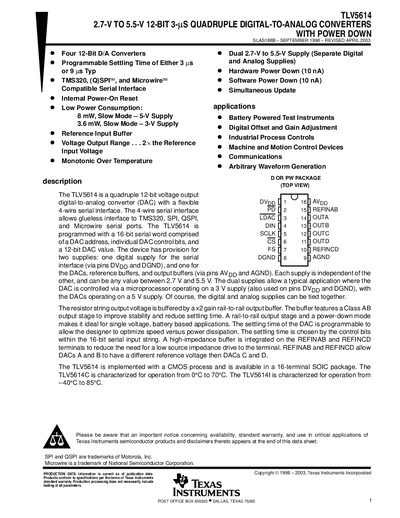

TLV5614 is a quadruple 12-bit voltage output digital-to-analog converter (DAC) with a flexible 4-wire serial interface.
The TLV5614 provides four independent 12‑bit digital‑to‑analog converters in a single package. It operates from dual supplies (2.7 V‑5.5 V) allowing separate digital and analog rails, which is useful for mixed‑voltage systems. The device supports SPI, QSPI and Microwire interfaces and includes hardware and software power‑down modes with a typical 10 nA quiescent current.
Key features include a rail‑to‑rail output stage, programmable 3 µs‑9 µs settling time, integrated reference buffers, and a wide range of package options (SOIC, TSSOP, PW). Detailed electrical specifications, timing requirements and mechanical drawings are provided for design engineers.
| Supply voltage range | 2.7 V to 5.5 V |
|---|---|
| Resolution | 12 bits |
| Integral nonlinearity (INL) | ±0.5 LSB |
| Differential nonlinearity (DNL) | ±0.5 LSB |
| Power‑down supply current | 10 nA |
The device operates from a dual supply of 2.7 V to 5.5 V.
It contains four independent 12‑bit DAC channels (quadruple).
The power‑down current is typically 10 nA.
