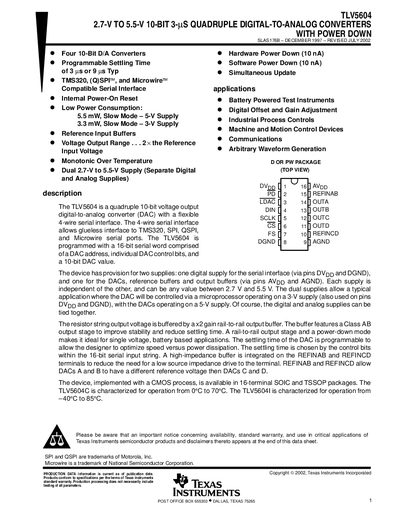

The TLV5604 is a quadruple 10-bit voltage output digital-to-analog converter (DAC).
The TLV5604 is a quadruple 10‑bit digital‑to‑analog converter that operates from 2.7 V to 5.5 V on separate digital and analog supplies. It offers hardware and software power‑down, programmable settling time, and compatible serial interfaces such as SPI, QSPI and Microwire.
The device is offered in 16‑pin SOIC and TSSOP packages, with operating temperature ranges of 0 °C to 70 °C (TLV5604C) or –40 °C to 85 °C (TLV5604I). Key electrical specifications include 10‑bit resolution, INL of ±1 LSB, DNL up to +0.1 LSB, and a power‑down current of only 10 nA.
| Resolution | 10 bits |
|---|---|
| Integral Nonlinearity (INL) | ±1 LSB |
| Package options | 16‑pin SOIC or TSSOP |
| Operating temperature (TLV5604C) | 0 °C to 70 °C |
| Operating temperature (TLV5604I) | –40 °C to 85 °C |
