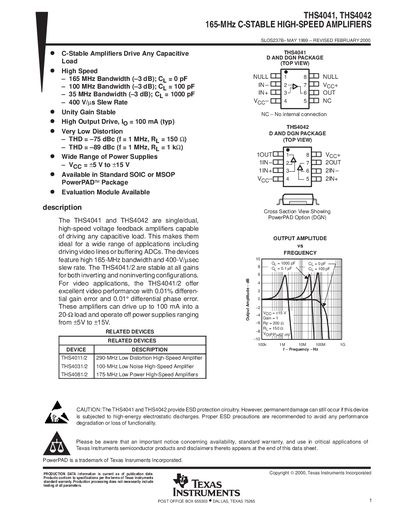

THS4041/2 165MHz C-Stable High-Speed Amplifiers is a single/dual, high-speed voltage feedback amplifier capable of driving any capacitive load. This makes them ideal for a wide range of applications including driving video lines or buffering ADCs. The device features high 165-MHz bandwidth and 400-V/µsec slew rate. The THS4041/2 are stable at all gains for both inverting and noninverting configurations. For video applications, the THS4041/2 offer excellent video performance with 0.01% differen- tial gain error and 0.01° differential phase error. These amplifiers can drive up to 100 mA into a 20-Ω load and operate off power supplies ranging from ±5V to ±15V.
The THS4041 and THS4042 are single‑/dual‑channel, PowerPAD‑option high‑speed voltage‑feedback amplifiers designed to drive capacitive loads. They offer a 165 MHz -3 dB bandwidth, 400 V/µs slew rate, and up to 100 mA output current, making them suitable for video line drivers and ADC buffering.
The devices operate from +5 V to +15 V (single supply) or 4.5 V to 16.5 V (dual supply) and include ESD protection. Detailed electrical characteristics, typical performance curves, and mechanical package dimensions are provided in the sheet.
| Bandwidth (‑3 dB) | 165 MHz |
|---|---|
| Slew Rate | 400 V/µs |
| Typical Output Drive | 100 mA |
| Total Harmonic Distortion (1 MHz, 150 Ω load) | -75 dBc |
The amplifiers can drive up to 100 mA into a low‑impedance load.
The specified slew rate is 400 V/µs.
