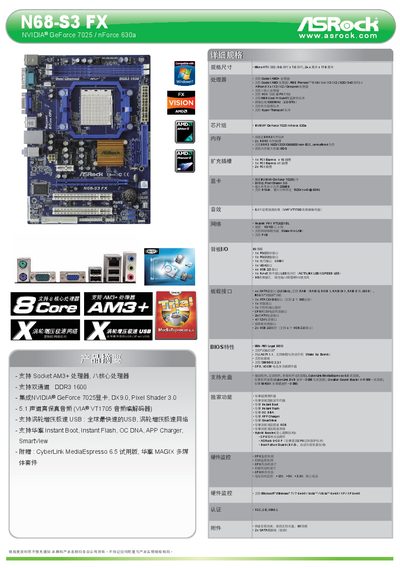

This document introduces the detailed specifications and features of the ASRock N68-S3 FX motherboard, including supported processors, memory slots, audio, network, back panel I/O, BIOS features, etc. The motherboard adopts the Micro ATX form factor and supports Socket AM3+ and Socket AM3 processors, with support for eight-core processors and UCC functionality. In terms of memory, it supports dual-channel DDR3 memory technology with a maximum capacity of 8GB. In terms of graphics, it integrates NVIDIA GeForce 7025 graphics card, supports D-Sub interface, and achieves a maximum resolution of 1920x1440 @ 60Hz. For audio, it adopts 5.1-channel high-fidelity audio technology. In terms of network, it supports 10/100 Ethernet and Wake-On-LAN function. The back panel I/O includes PS/2 mouse and keyboard interfaces, serial port, VGA interface, USB interfaces, RJ-45 network card interface, HD audio jacks, etc. The motherboard also has hardware monitoring and certification functions. Overall, the ASRock N68-S3 FX motherboard has high performance and stability, suitable for various application scenarios.
This manual describes the ASRock N68-S3 FX motherboard, which supports Socket AM3+ 8‑core CPUs, dual‑channel DDR3‑1600 memory, and includes integrated NVIDIA GeForce 7025 graphics. It lists the available expansion slots (1 × PCI Express x16, 1 × PCI Express x1), audio codec (VIA VT1705), and a variety of connectors such as USB 2.0, VGA, PS/2, and SATA ports with RAID support.
The document also details BIOS features like Instant Boot, Instant Flash, OC DNA, and App Charger, as well as software utilities such as CyberLink MediaEspresso and MAGIX. It highlights the board’s “Fast USB” technology, claiming the fastest USB performance, and provides installation guidance and connector layout diagrams. This manual is written in Chinese.
| Memory type | DDR3 1600 (dual‑channel) |
|---|---|
| Integrated graphics | NVIDIA GeForce 7025 |
| Audio codec | VIA VT1705 (5.1 channel) |
| PCI Express slots | 1 × PCI Express x16, 1 × PCI Express x1 |
| RAID support | RAID 0, RAID 1, RAID 5, JBOD |
| USB performance | Fast USB (claimed as the fastest USB) |
Yes, the board supports dual‑channel DDR3‑1600 memory.
The VIA VT1705 codec delivers 5.1 high‑fidelity audio.
The manual advertises a “Fast USB” that is the globally fastest USB interface.
