The TLP763J is a photocoupler produced by Toshiba. It uses a GaAs infrared LED optically coupled to a zero-voltage crossing turn-on photo-triac in a 6-lead plastic DIP. The product features include peak off-state voltage 600V (min.), trigger LED current 10mA (max.), on-state current 100mA (max.), isolation voltage 4000Vrms (min.), and UL, BSI, SEMKO and VDE certification.

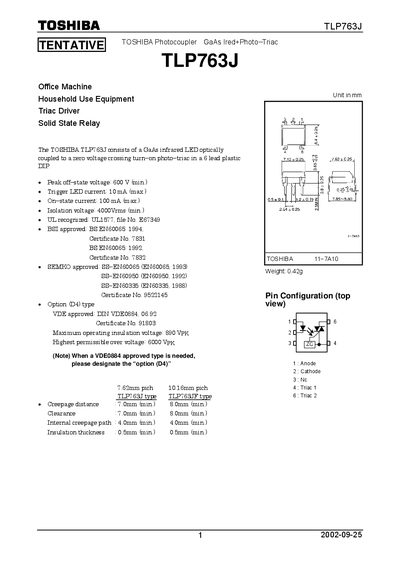

The TLP763J is a GaAs infrared LED optocoupler with a zero‑voltage‑crossing photo‑triac in a 6‑lead plastic DIP. The datasheet lists key parameters such as peak off‑state voltage, on‑state current, isolation voltage, and typical forward voltage, along with pin configuration and mechanical dimensions.
Maximum ratings, individual and coupled electrical characteristics, and allowable forward current curves are detailed, followed by safety and usage restrictions for designers. The document also includes temperature ranges, storage limits, and compliance certifications.
| Peak off‑state voltage | 600 V (min) |
|---|---|
| On‑state current | 100 mA (max) |
| Isolation voltage | 4000 Vrms (min) |
| Forward current (IF) | 50 mA |
| Peak on‑state current (ITP) | 1 A |
| Operating temperature range | -40 °C to 100 °C |
| Weight | 0.42 g |
The peak off‑state voltage is 600 V (minimum).
The isolation voltage is rated at 4000 Vrms (minimum).
The device is specified to operate from –40 °C up to 100 °C.
The maximum forward current (IF) is 50 mA.
