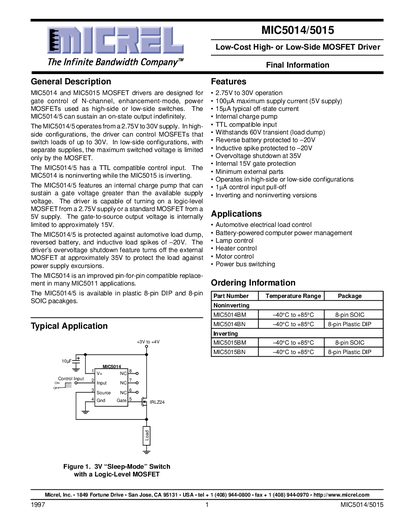

MIC5014/5015 is an N-channel enhancement-mode power MOSFET driver from Micrel. It supports a supply voltage of 2.75V to 30V and can output up to 30V. The driver has a TTL compatible control input and supports noninverting and inverting operation modes.
The Micrel MIC5014/5015 are MOSFET drivers designed for gate control of N-channel, enhancement-mode power MOSFETs used as high-side or low-side switches. The devices operate from a 2.75V to 30V supply and include an internal charge pump capable of sustaining a gate voltage greater than the available supply voltage.
| Supply Voltage Range | 2.75V to 30V |
|---|---|
| Maximum Supply Current (5V) | 100µA |
| Gate-to-Source Output Voltage Limit | approximately 15V |
| Overvoltage Shutdown Threshold | 35V |
The MIC5014 is noninverting while the MIC5015 is inverting.
They are available in plastic 8-pin DIP and 8-pin SOIC packages.
