The SY10/100EL57 is a fully differential 4:1 multiplexer that can also be used as a differential 2:1 multiplexer. It is ideal for low skew applications such as clock distribution.

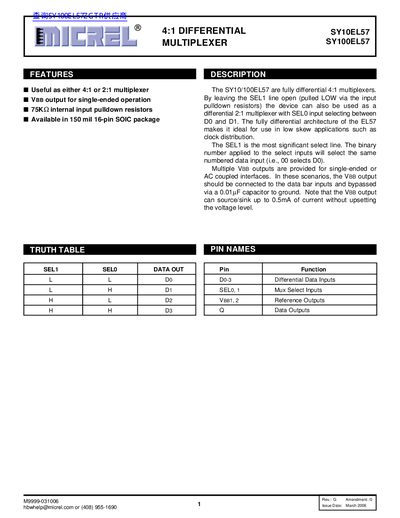

This document is a technical datasheet for the Micrel SY10EL57 and SY100EL57 devices. These are fully differential 4:1 multiplexers that can also function as 2:1 multiplexers by leaving the SEL1 line open. The architecture is designed for low skew applications such as clock distribution.
| Functionality | 4:1 or 2:1 multiplexer |
|---|---|
| Input Pulldown Resistors | 75KΩ internal |
| Operating Temperature Range (10EL) | -40 to +85 °C |
| Package Type | 16-pin SOIC |
Yes, by leaving the SEL1 line open or pulled LOW via input pulldown resistors.
The device functions as a fully differential 4:1 multiplexer, or as a differential 2:1 multiplexer if the SEL1 line is left open.
The SY10EL57/SY100EL57 is available in a 16-pin SOIC package.
