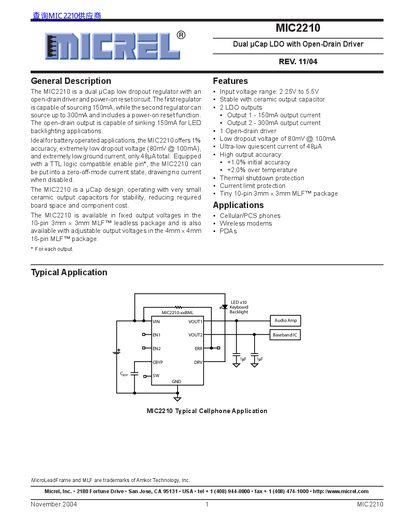

The MIC2210 is a Micrel dual low dropout regulator with an open-drain driver and power-on reset circuit.
The MIC2210 is a dual uCap low dropout regulator with an open-drain driver and power-on reset circuit. The first regulator can source 150mA, while the second can source up to 300mA and includes a power-on reset function. It features extremely low dropout voltage (80mV @ 100mA) and ultra-low quiescent current of 48uA total.
| Input voltage range | 2.25V to 5.5V |
|---|---|
| Output 1 current | 150mA |
| Output 2 current | 300mA |
| Dropout voltage (150mA) | 80mV @ 100mA |
| Output accuracy (initial) | +1.0% |
| Operating temperature range | -40°C to +125°C |
The device is ideal for battery operated applications such as cellular/PCS phones, wireless modems, and PDAs.
Yes, it includes thermal shutdown protection and current limit protection.
