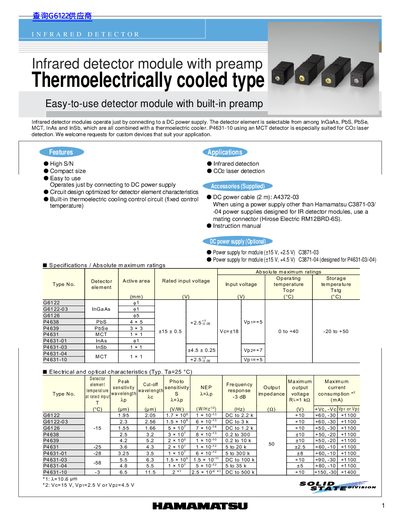

This document describes the features and characteristics of the infrared detector modules, including high signal-to-noise ratio, compact size, and ease of use. The modules operate simply by connecting to a DC power supply and are suitable for infrared detection and CO2 laser detection. The document also mentions the availability of custom devices tailored to specific applications.
The IF4 module is an easy‑to‑use infrared detector with a built‑in preamplifier and thermoelectric cooling. It operates by connecting to a DC power supply and supports a range of detector materials including InGaAs, PbS, PbSe, MCT, InAs and InSb.
The document provides electrical and optical characteristics, dimensional outlines, and handling precautions. Power is supplied via a +15 V line together with either +2.5 V or +4.5 V for the cooling circuit, and the module includes a fixed‑temperature cooling control circuit.
| Detector element options | InGaAs, PbS, PbSe, MCT, InAs, InSb |
|---|---|
| Cooling supply voltage | +2.5 V or +4.5 V |
| Active area dimensions | 4.85 mm × 40.2 mm |
The IF4 module can be equipped with InGaAs, PbS, PbSe, MCT, InAs, or InSb detector elements.
It uses a built‑in thermoelectric cooler that must be powered with +2.5 V or +4.5 V to operate.
The active area measures approximately 4.85 mm by 40.2 mm.
